An engineering drawing hatches every material differently; a map fills every zone with a tint. Both come down to a handful of shapes repeated thousands of times in a dozen colours — and the ordinary way of doing it puts a separate copy of the shape into the file for each colour it appears in.

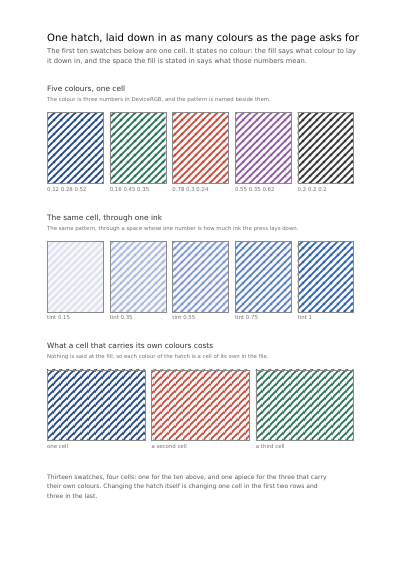

One such pattern is laid down here in five colours and in five strengths of a single press ink, with the ordinary kind beside it so the cost is there to see: one against five. On a hatched engineering drawing or a map filled with flat tints, that difference is the size of the file.
Nothing is left out and nothing is simplified: this is the program exactly as it runs, for the developer who uses this library. The third is the description itself: a plain list of what the page has to say, which is what the service is sent.
Read the Rust source Read the Python source Read the JSON source
The document is lighter than it was, and every page still looks exactly the same. See this document's row in the table of every example.
