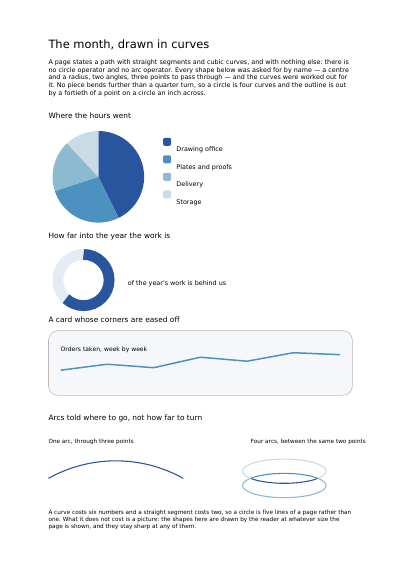

A month's report, drawn in curves
A pie of where the hours went, a ring gauge of how far into the year the work is, a card with eased corners, and arcs told where to go rather than how far to turn.
The monthly report of a print shop says where the hours went, how far into the year the work has come, and how orders moved week by week. Those figures usually arrive as pictures pasted onto the sheet: fine on a screen, blurred the moment somebody prints it or looks closer.
Here the document draws them itself. A page can describe straight segments and curves and nothing else — there is no circle to ask for and no arc — so every shape is named instead: a centre and a radius, two angles, three points to pass through. The reader traces them at whatever size the sheet is shown, so they stay crisp at all of them, and they weigh a few dozen characters where a picture weighs a file.
What this example shows
- A pie whose every slice is one arc shut by two straight sides.
- A ring gauge, a card with eased corners, a line whose turns are rounded.
- Traced by the reader, sharp at every size, for the weight of a sentence.
The code, in full
The same document is written twice, once in each language. Both files are shown in full, with the code coloured on the server, and can be copied in one click.
The document itself
The same document is written in each of these languages. Open the one you want to look at.
What this document weighs
This document weighs 42,072 bytes.
The team wrote this example after measuring the documents above, so there is no earlier figure to set beside it. See every document measured.
