A Timetable That Reports on Its Own Layout

When a table comes out wrong, the first question is why a column is so narrow or a row so tall. Here the library answers it. A morning bus timetable is laid out with every cell outlined in a thin line, and a note on each cell gives the library's own account of it. Under the table, a few lines count its columns and their widths, its heading, body and foot rows, what its cells hold, and, for each reason a row can take its height from, how many cells it applies to.

The second page shows what happens when things go wrong. A table with a row one cell short and a row too tall for its box is laid out anyway, and each fault is named underneath. A remark too long for one box is cut where a line ends and carried on in the next, with at least three lines on each side. The room left under a table's last row is shared out among its rows. Last, a table twice as wide as its box is shrunk whole into it, by one factor on both axes, and the page says by how much.

What This Example Shows

  • Every cell says why it has the size it has.
  • A faulty table laid out anyway, its faults named.
  • One row cut cleanly across two boxes.

The Source Code, Complete

Nothing is left out and nothing is simplified: this is the program exactly as it runs, for the developer who uses this library.

Read the Rust source Read the Python source

The Document Itself

Open the document in English Open the document in French Open the document in German Open the document in Spanish Open the document in Italian Open the document in Portuguese

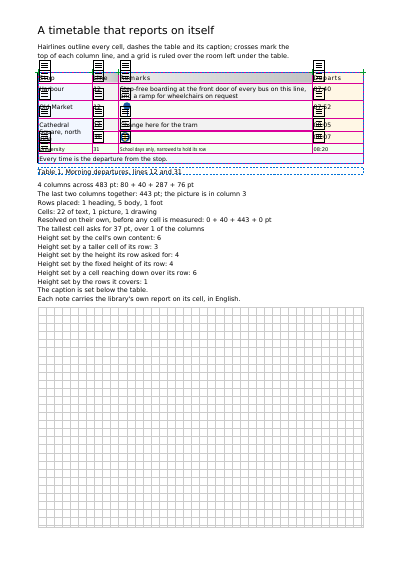

A Timetable That Reports on Its Own Layout, first page
Open the PDF Download PDF

The Same Document in Other Languages

This document weighs 63.3 kB

See the size of every example document.
